DYSON ADVENTURE FOLDING E-BIKE 20" WITH DISC BRAKES -  BLUE

Shipping options (choose option at checkout once added to cart):

The updated 2025 Adventure 20-inch folding electric bike is easy to get into small storage spaces, lifts, apartments and car boots, but it also folds out to a full-size powerful and capable e-bike. It offers excellent ride quality and posture, a compact 250W high-torque LPC motor and Tektro disc brakes for safe and snappy stopping power.

The Adventure 20-inch folding electric bicycle gives you all the benefits of a fully featured ebike, while offering practicality not found in rigid frame bikes. It is perfect for commuting, taking on a road trip or on an RV - and it even fits in the boot of most hatchbacks. The approximate dimensions when folded are 88 x 48 x 66 cm, but it is not a box so you can quite often fit the bike in a smaller space, see the video below for more on this.

Keep it simple. When taking the bike in and out of your vehicle it can be easy to break or bend things, that's why we keep the bike simple and tidy by using a slimline display with a strong mount, a bell is intergrated into the left-hand brake lever and twist shift gear control and a guard for the rear derailleur. Even with our best efforts, accidents sometimes happen, for this reason we have quick release waterproof plugs on the display and brake levers for quick and easy replacement. No need to spend hours in the workshop running cables through the frame.

Quality components. It is easy to make a bike cheaper by using cheaper components and smaller capacity batteries, but we prefer spend a little more to make something that will last and be reliable. We use Tektro brake components, stainless steel spokes, lock-on grips, sensitive motor controllers filled with resin to prevent moisture entry. Shimano gear sets and quality bearings to name just a few examples.

Designed in Australia for Australians. With feedback from thousands of customers since 2013 we have tailored our bikes to meet the needs of Australian's. This translates to a comfortable riding position, smooth consistant assistance from our unique LPC motor and control systems. We support our products through a National Dealer Network from Broome to Yeppon and we are here to support our products from our base in Melbourne. We are happy to speak with you feel free to give us a call 03 9532 3132 - no chat bots here!

FEATURES

-Folding Aluminium frame design means this electric bike fits in spaces most others simply can't - yet we make no compromises in frame and component quality. It is a real full-size e-bike, which just happens to fold really small.

-Powerful high-torque 250W electric motor with Linear Power Control, (LPC) for smooth, consistent power. With Dyson Bikes unique LPC design the power output of the bike remains consistant in level 1-5 regardless of the of battery voltage and meets the requirements of Australian Standard AS 15194:2016, (EN15194:2009, MOD).

-Long-range 12.8 Amp hour battery will make light work of your bike trips, but if you feel like a bit more of a workout, simply dial down the level of motor assistance. The new digital colour display shows you the current assistance level, remaining battery power, speed and trip distance.

-While the electric motor gets you going, our new disc brakes see to it that you can stop with ease, power and precision. Both brake levers have built-in power cut-outs to make sure the power to the motors stops immediately once either brake is applied.

-The height adjustable handlebars and seat mean the Adventure 20-inch Folding can easily accommodate riders who are north of six feet in height in a perfect ride position. In its lowest position the seat can drop down to 71.5cm, so that shorter riders can also get into an ideal riding position.

-The Dyson Adventure 20-Inch Folding e-bike is designed and engineered for the ultimate ease of use - folding and unfolding can be done in seconds. Even the pedals fold down with a single action to further reduce the bike's packed size. Absolutely no tools are needed to fold or unfold the bike.

-A custom designed rear-rack can also be fitted to turn this bike into a fully-fledged and extremely capable pack-mule of a folding bike. To help you stay clean and dry, you can option mudguards, which are also made-to-measure for this versatile folding electric bike.



TECHNICAL SPECIFICATIONS:

BATTERY - Lithium-Ion / 12.8 Ah / 36V Nominal / 460 Wh / Fully protected / Lockable

RANGE - Typical 50-80km / Dependent on assistance level and riding conditions

MOTOR - High-torque Dyson / Linear Power Control / 250W Continous / Hub-Mounted / Maintenance-Free

ASSIST FUNCTION - Pedal Assist

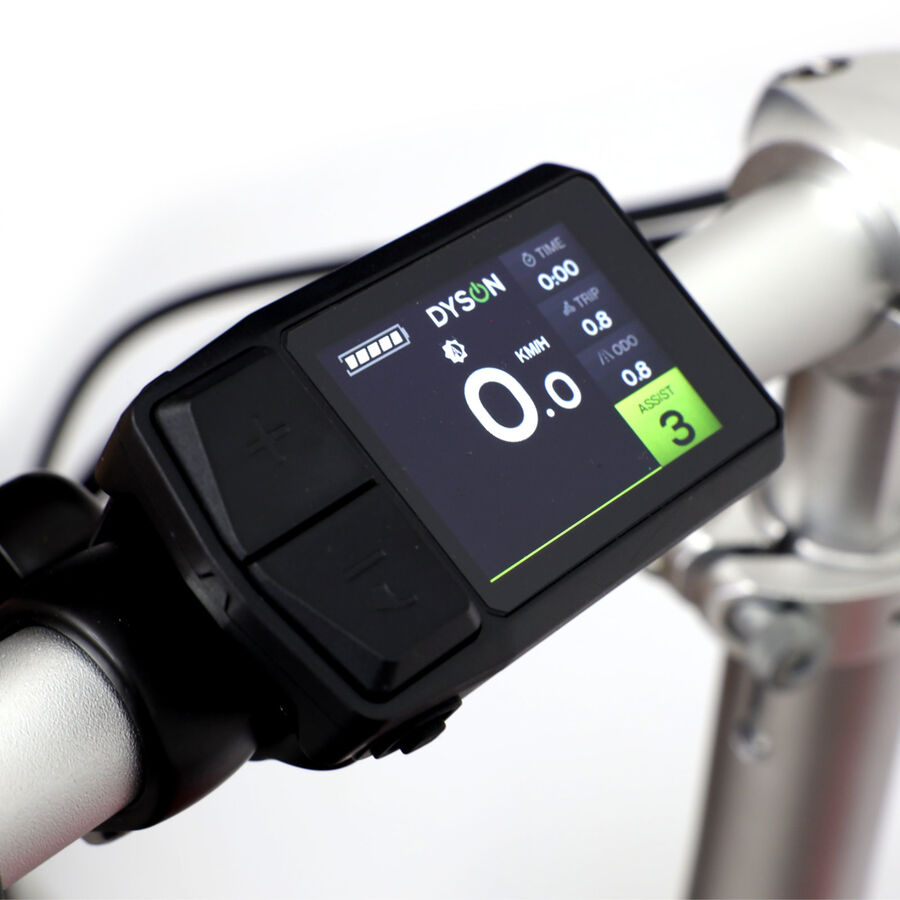

DISPLAY FUNCTIONS - Colour / Waterproof / 6 Selectable motor assist levels with walk function / Battery level indicator / Speed / Trip functions / USB-C charge port

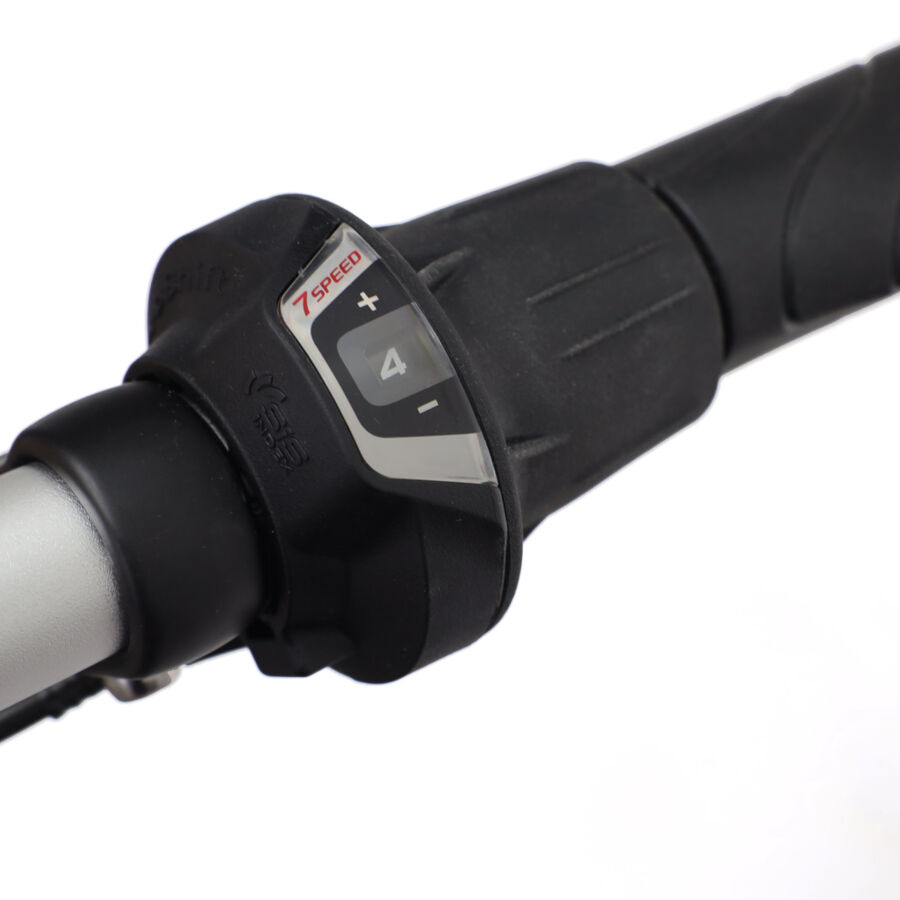

DRIVETRAIN -Shimano 7 speeds, (14-28T) rear cassette with twist grip shift, 52T Front Chainring

CADENCE SENSOR - Enclosed / Fast-Response / High-Precision

BRAKES - Disc / Alloy levers / Auto power cut-off / Intergrated Bell

FORK - Alloy Suspension / Adjustable

WHEELS - 20-inch Double Wall Alloy rims with Stainless steel 13G spokes

TYRES - Schwalbe 20 x 2.125 / Car type valve

PEDALS - VP Folding

BELL - Intergrated in rear Brake Lever

HANDLEBARS - Alloy / Folding / Height adjustable / Lock-on Ergo Grips

SEAT - Comfort Gel / Quick release / Adjustable 71.5 to 106 cm in height

MUDGUARDS - Optional / Custom made available

LIGHTS – Accessory plug in Dual Beam front light

RACK - Accessory

KICK STAND - Heavy-duty alloy / Centre mount

CHARGER - AU Standards C-Tick approved / 2 Amp / 6-8h Charge time from empty, optional 12 Volt Car Charger

COLOURS - Midnight Blue

ADDITIONAL - Fabric Cageless drink bottle studs as standard

SEAT HEIGHT - Approx. - Low: 73cm - High: 107cm.

WEIGHT - 20.25kg complete with battery

Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads, footpaths, shared paths, bicycle lanes and bicycle paths.
