AMPD BROS ACE-S CARGO MAX ELECTRIC BIKE
-
ColorPlease choose your colour and/or size.?In Stock?
Couldn't load pickup availability
Shipping & Pickup Information
Shipping & Pickup Information
Australia wide postage available or local pick-up, choose at checkout.
Fast shipping Australia wide on all orders. We only use trusted couriers like Australia Post & TNT to ensure your item(s) arrive quick & safely.
View our shipping T&C's here.
AMPD BROS ACE-S CARGO MAX ELECTRIC BIKE
AMPD Bros Ace-X PRO S4 Dual Suspension Fat Tyre Electric Bike
Shipping options (choose option at checkout once added to cart):
1. Ship to home ($150)
Get your new bike delivered in a box. ATTENTION: Whilst minimal assembly is required, basic mechanical skills and proper tools are a must. If your order includes additional items, they may arrive separately from the bike. We highly recommend taking your bike to a local bicycle mechanic if you are in any doubt when attempting assembly. If you decide to take your bike to a 3rd party for assembly or to check over of your own work, additional fees will apply and these are at your own expense. If any damage is evident to the box when it arrives please take photos and contact us prior to attempting assembly.
2. Drift Bikes Fully Assembled Delivery ($375 - within 50km of store. This cost is made up of $150 for Delivery and $225 for Assembly.)
Get your new bike hand-delivered to your shipping address already professionally assembled by Drift Bikes mechanics. Our team will contact you when your bike is built and ready for delivery. If your order includes additional items, they will be delivered with your bike.
3. Pickup in-store (*FREE)
Pick up your new bike in a box. ATTENTION: Whilst minimal assembly is required, basic mechanical skills and proper tools are a must.
*We highly recommend paying our workshop $225 to professionally assemble your Ampd Bros bike. If selecting pick up in-store we will contact you to check if you would like to pick up your boxed bike or have it professionally assembled. You can pay for assembly upon pickup. If choosing to take your bike in a box for self-assembly you assume any expenses related to your own mechanical work to be at your own expense.
Professional assembly includes:
Full assembly of the bike along with recycling the box (we pay for it to be recycled).
Assembly includes: Checking hanger alignment, pre stressing cables, training brake pistons, test derailleur limits, check ALL bolts along with test riding the bike to bed brakes in along with re-calibration and finally have the bike checked by a second mechanic. The build also insures we cover all warranty issues in the first 12 months as well as guaranteeing our build for 90 days and offering a free valued at $140. We feel we offer exceptional value for the $225 Ampd Bros build.
Please note, boxed bikes are stored at our warehouse location and may take up to 2 days to be transferred to the retail store.
Professionally assembled bikes can take up to 10 working days in peak season.
ATT: The 250W (500W for NSW) motor is road legal and doesn't require a licence or registration. The 750W and 1000W motor is for off-road (private property) use only.
About this bike:

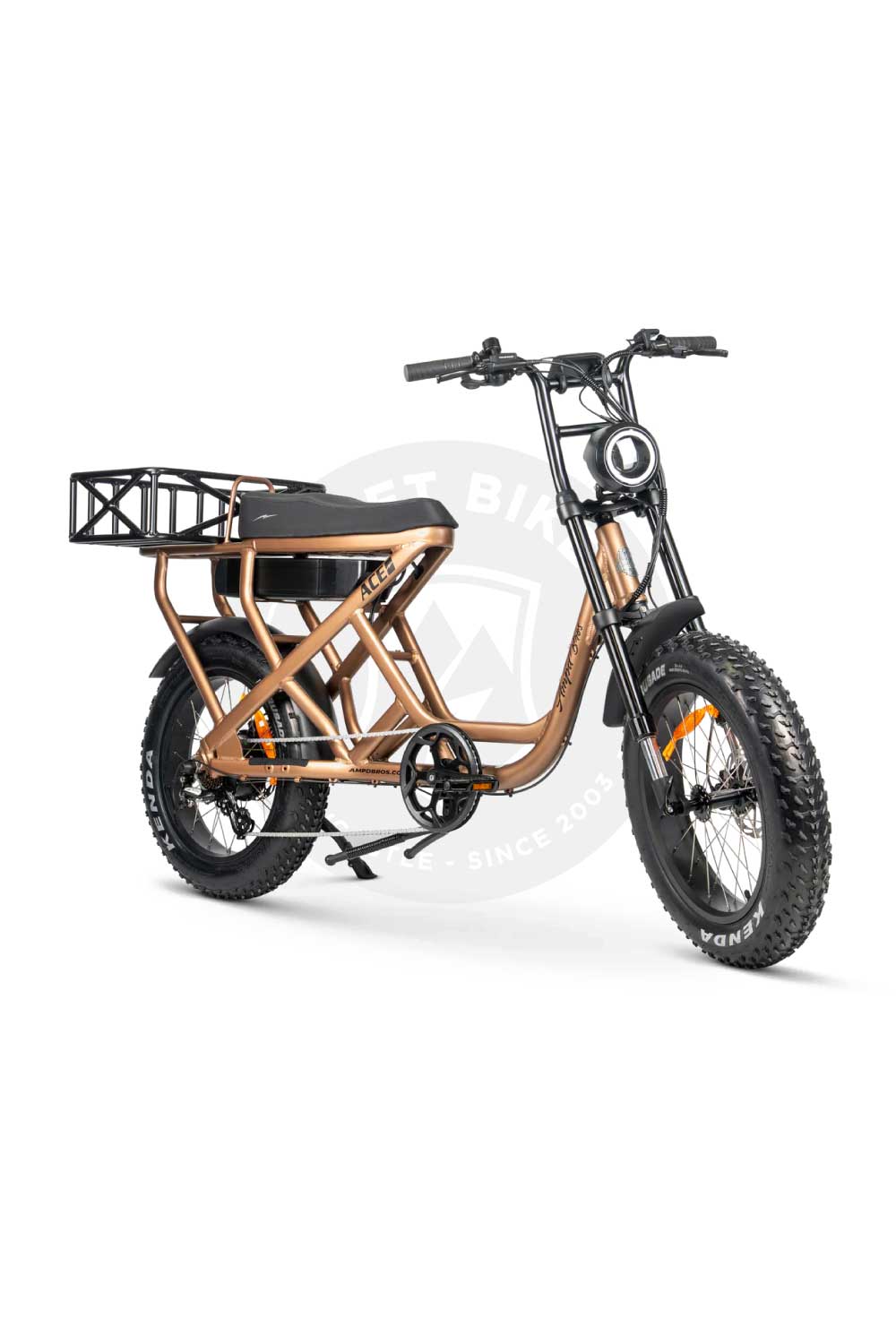

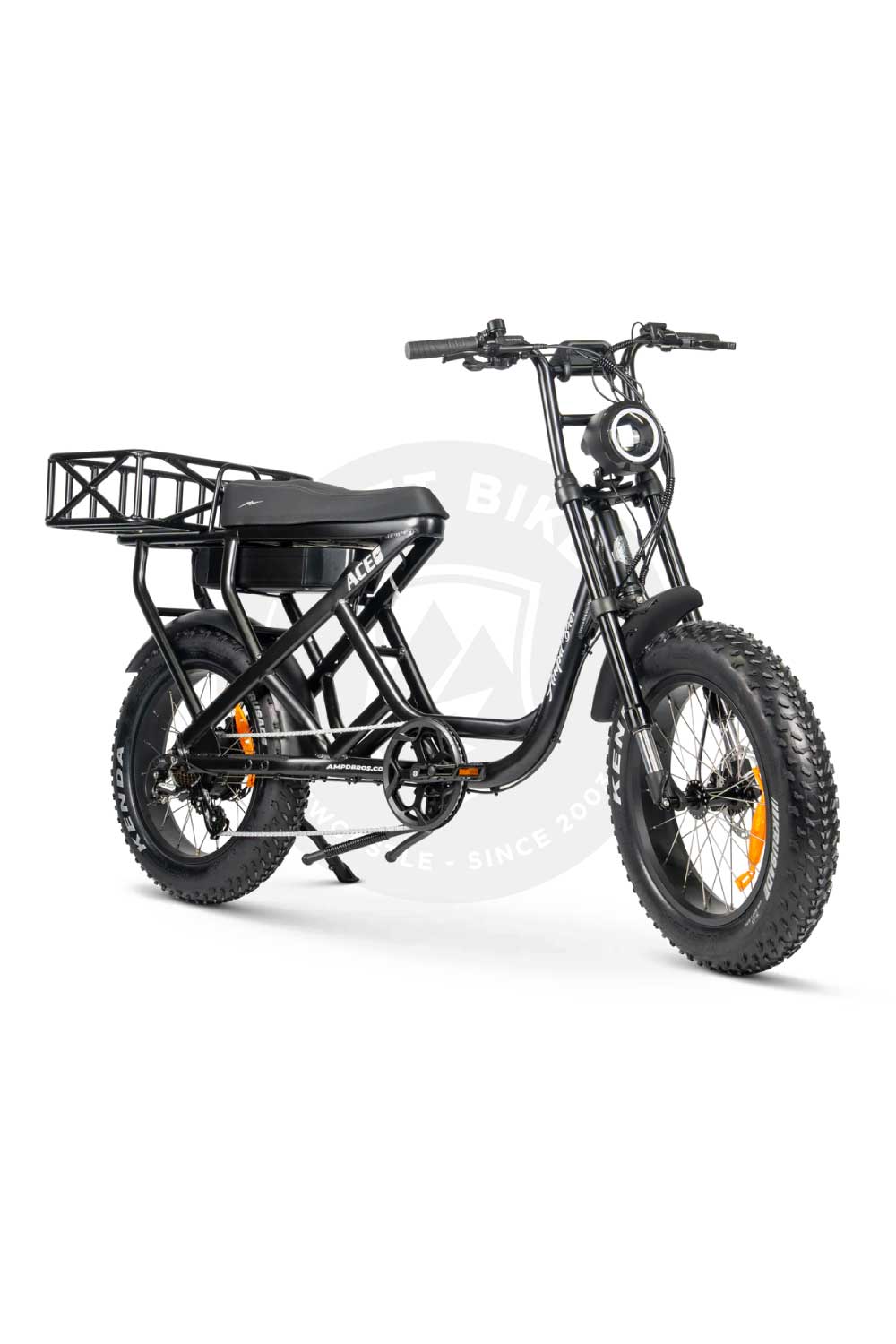

Introducing the ACE-S Cargo MAX – Built for More!
The ACE-S Cargo MAX takes everything you love about the ACE range and supercharges it for ultimate cargo-hauling capability. Designed with an integrated extra-large rear rack, this powerhouse e-bike is built to carry more gear, more weight, and even additional passengers—all while delivering the same rugged performance you expect from Ampd Bros.
Equipped with front suspension forks, the ACE-S Cargo MAX offers a smoother, more stable ride across all terrains. At its heart, the high torque 80N.M Bafang Rear Hub Motor delivers serious power, letting you cruise at higher speeds with ease.
Crafted with a sleek Low Bar Step-Through frame, the ACE-S Cargo MAX is all about accessibility and comfort, making it perfect for riders of all sizes. With its heavy-duty construction, this bike is designed for adventure, work, and everything in between.
Since its debut in 2019, the ACE Bike series has been Australia’s favourite fat tyre bike, and the Cargo MAX continues that legacy. Featuring a Shimano 7-Speed Derailleur, vibrant colour options, and our GEN3 Aluminium Battery with 21700 cells (30% larger than competitors), this bike is engineered for maximum power, efficiency, and safety.
The Custom Master Control unit enhances motor performance with advanced algorithms, seamless light controls, and improved diagnostics. Powered by Bafang’s High Torque Motor, the ACE-S Cargo MAX is ready to tackle any journey—whether you’re commuting, exploring, or hauling heavy loads.
More Cargo. More Power. More Adventure.
The ACE-S Cargo MAX is ready to roll. Are you?
What's New for ACE Cargo MAX?
- Extended to Integrate a Large Rear Rack
- 52V 20AH Battery
- Micro Intelligent Colour Display
- Front Suspension Fork
- Ampd Bros Signature Headlight
- Epic Metallic Colours for 2025
The ACE Cargo ensures no adventure is off-limits, accommodating two riders with its spacious seat. The removable Samsung Battery delivers an incredible 80km range on a single charge. From beaches to hills, dirt tracks to pavements, the ACE Cargo handles it all effortlessly. Opt for the Off-Road Throttle Kit for cruising ease, and embrace rapid gear shifts with the Shimano Rapid Fire shifter and Altus transmission.
Join the ACE revolution and unlock limitless possibilities with the ACE-S Electric Fat Tyre Bike – your ticket to exhilarating adventures awaits.
Range
- Ace Mini Models 40km+
- Ace Standard Models 60km+
- Ace Plus/Cargo Models 80km+
Battery
- Ace Mini 48V / 480Wh, 10AH
- Standard 52V / 780Wh, 15AH
- Plus/Cargo 52V / 1,040Wh, 20AH
- Samsung Premium 21700 Lithium cells
- Battery is removable and can be charged in bike or separately.
Motor Drive
- All Models Bafang Rear Hub 250W High Torque Motor
- Ace Mini & Standard 65N.m
- Ace Plus+ & Cargo 80N.m
- All Models Restricted to 25km/h
Controller
- Ampd Bro's Custom - Best-in-class power density and state-of-the-art motor control algorithms.
- Ace Mini & Standard Rated to 500W / Peak 750W+
- ACE Plus/Cargo Rated to 750W / Peak 1,000W+
Ride Modes
- Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
- Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
- Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit
Features
- Hill Ability Up to 15º Degree / 25% Incline PAS
- Seat Custom Large Black Dual Seat for 2 Riders
- Warranty 2 Years (1 Year on Batteries)
- Lights Front LED Headlight with DRL
- Lights Rear LED Brake Light inbuilt to battery pack
- Grips Black Velo Wide Comfort
- Bell Yes
Brakes
- Ace Mini Ampd Bros Hydraulic with 160mm Disc
- Ace Standard/Plus/Cargo Tektro Hydraulic with 180mm Disc
- E-Brakes Yes Motor Safety Cut Off
Display
- Colour Micro LCD Multi-Function with ODO, Trip, Battery Level, Speed etc
Drivetrain
- Ace Mini Transmission Single Fixed Speed (No Shifter/Derailleur)
- All Other Models Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
- Derailleur Shimano Altus
- Pedals Wellgo Alloy - Black
- Chain KMC Z Series High Performance & Rust Resistant
Construction
- Frame Aluminium - "X" Step Over or "S" Step Through Low Bar Designs
- Handlebars Aluminium Motorcycle Inspired with Adjustable Height
- Fenders Matte Black Aluminium
Suspension
- Mini & Standard Models No Suspension
- Plus+ Models Front Custom Tuned Adjustable Fork
- Cargo Models Front Independent Suspension Fork (Non Adjustable)
Wheels & Tyres
- Ace Mini 16x.40" Innova Mud Tyres
- 20x4.0" Kenda Krusade Fat Mud Tyres
Charging
- 5-6hrs 10Ah Batteries with Standard 2A Charger
- 7-8hrs 15Ah Batteries with Standard 2A Charger
- 9-10hrs 20Ah Batteries with Standard 3A Charger
- Optional 5A Fast Charger Available for 2.5x Faster Charging
Dimensions
- Overall Length 1,750 mm
- Handlebar Height 1,140 - 1,190 mm
- Handlebar Width 660 mm
- Seat Height 810 mm Fixed Height
- Seat Length 600 mm
- Ground Clearance 270 mm
- Wheel Base 1,160 mm
- Rider Height Ideal for Riders up to 200cm Tall
Ace Mini Dimensions
- Overall Length 1,470 mm
- Handlebar Height 1040 mm
- Handlebar Width 660 mm
- Seat Height 770 mm Fixed Height
- Seat Length 370 mm
- Ground Clearance 190 mm
- Wheel Base 990 mm
- Rider Height Ideal for Riders up to 170cm Tall
Weights
- N.W of 10Ah Battery 3.2kg
- N.W of 15Ah Battery 4.34 kg
- N.W of 20Ah Battery 5.12 kg
- N.W of Standard ACE + Battery 32.3 kg
- N.W of ACE Plus+ Battery 36 kg
- N.W of ACE Mini + Battery 29 kg
- N.W of ACE Cargo + Battery 40.5 kg
- Max Loading 180 kg
- ACE Mini Max Loading 100 kg
Inclusions
- In Box Bike, Battery, Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand.
*Range Achievable may vary based on loading, motor use, throttle/pas, terrain, weather conditions and many other factors
