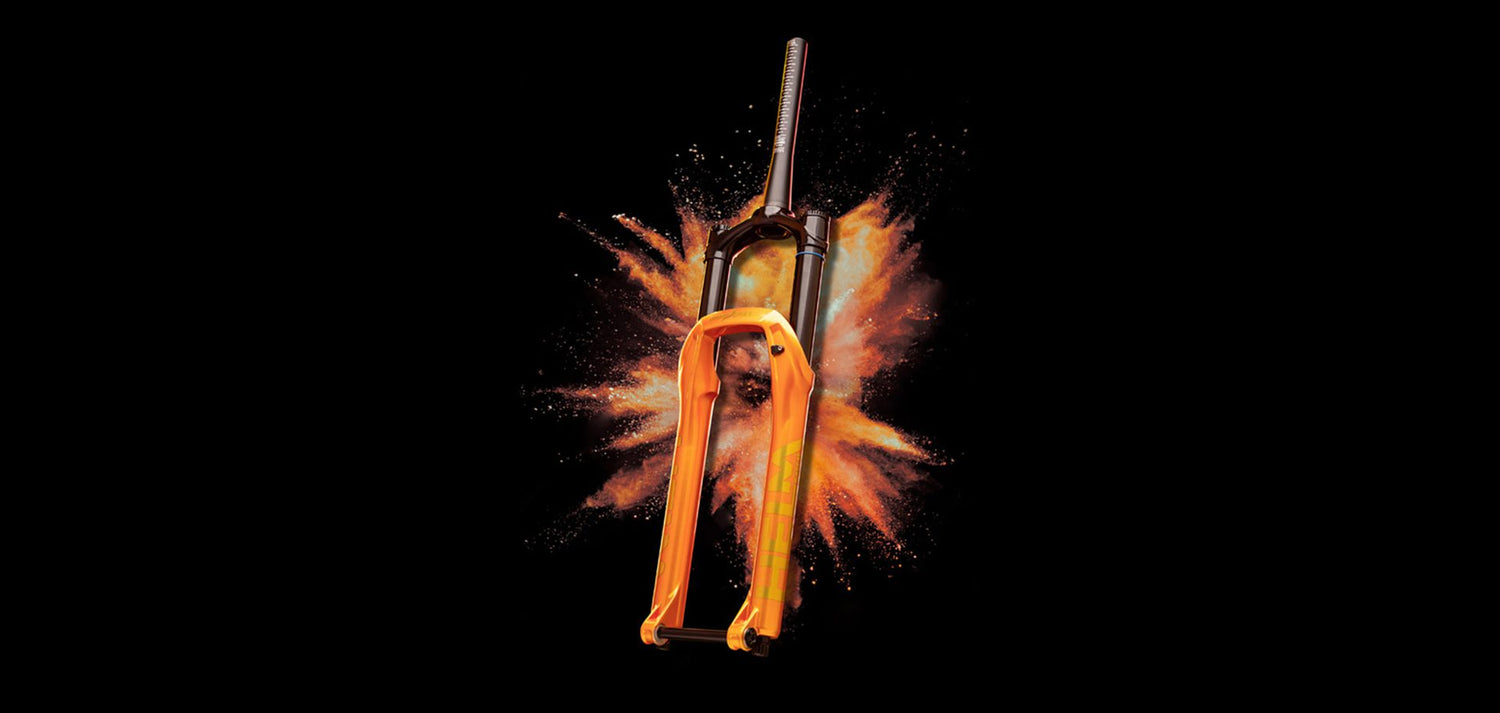

Cane Creek Helm MK2 Air Fork 29" 160mm - 44mm Offset
The Helm MKII is our first major update of the Helm fork lineup and improves on its predecessor in nearly every way. Hand-built in Western North Carolina and rigorously tested and developed in the Appalachian Mountains.

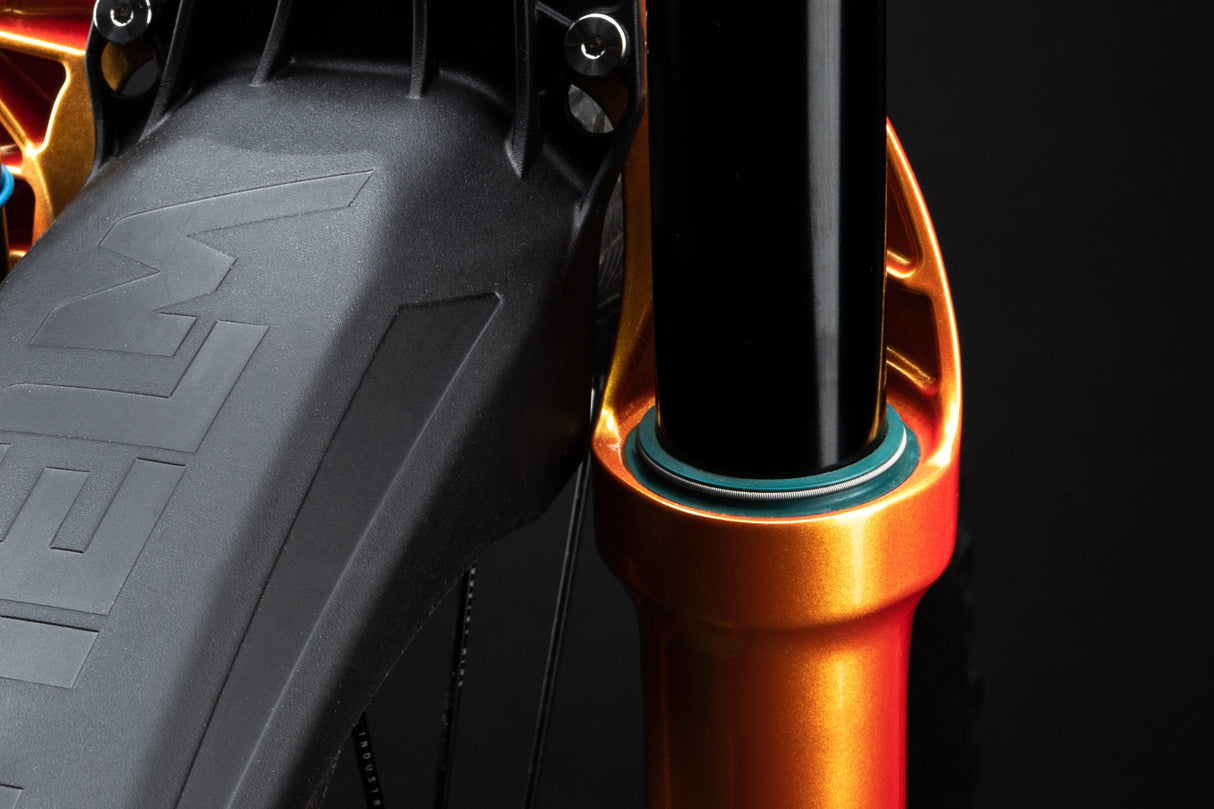

Featuring an updated damper design with new compression and mid valve circuits, a new SKF oil seal head, and Motorex 2.5 weight damper oil. All of these elements work to reduce friction and increase sensitivity.
The Limited Edition Helm MKII Sunburst is only available in our 29-inch wheel | 44mm offset platform with both Air & Coil Spring options available
Travel is pre-set at 160mm [Internally adjustable 130 – 160mm]

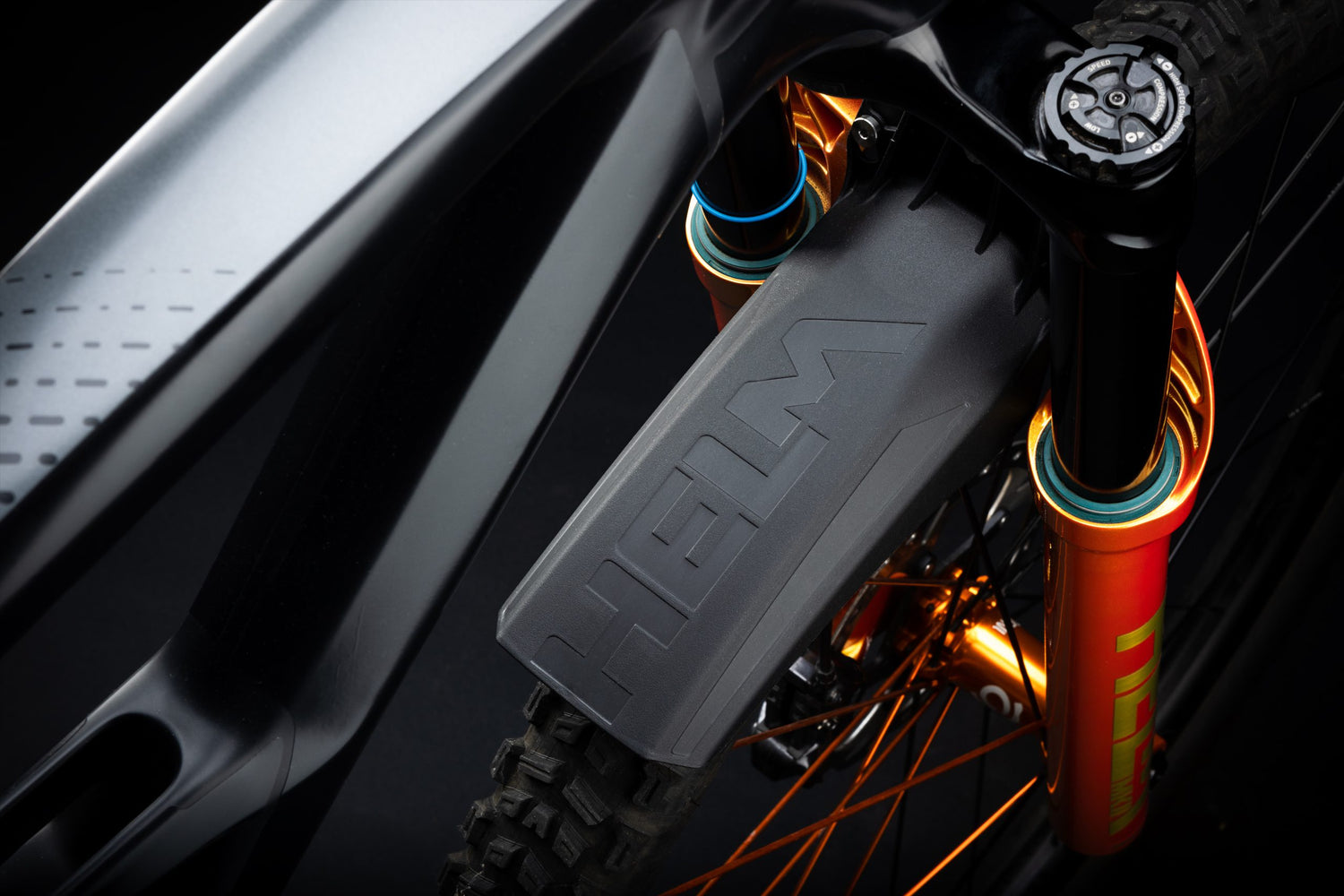

– Bolt-on Helm Fender and Gold Metallic decals are included –
2080 grams [Air]
2340 grams [Coil]
High Speed Compression, Low Speed Compression, Low Speed Rebound
High speed compression (10 positions)
Low speed compression (10 positions)
Low speed rebound (10 positions)
Indexed Volume Adjustment system [Air]
Spring Preload Adjustment [Coil]
Pre-Set from Factory at 160mm | Optimized for 130-160mm of travel. Travel is internally adjustable with 10mm Increments (160mm down to 130mm).
No additional parts required.
Double-Air system with tunable High volume positive and negative air springs [Air]
55 lb Coil Spring installed from factory 35-45-55-65 lbs springs available [Coil]
35mm
180mm. *If you are using a Hope Tech brake on a Helm fork, you will need to use a 200mm rotor with appropriate adapter.
"D-Loc" 15mm Bolt-on thru axle 15mm x 110 BOOST spacing / 44mm offset
64mm wide by 749mm tall (29) / 75mm wide by 739mm tall (27.5+)
